Wireless Detectors PAX PIR

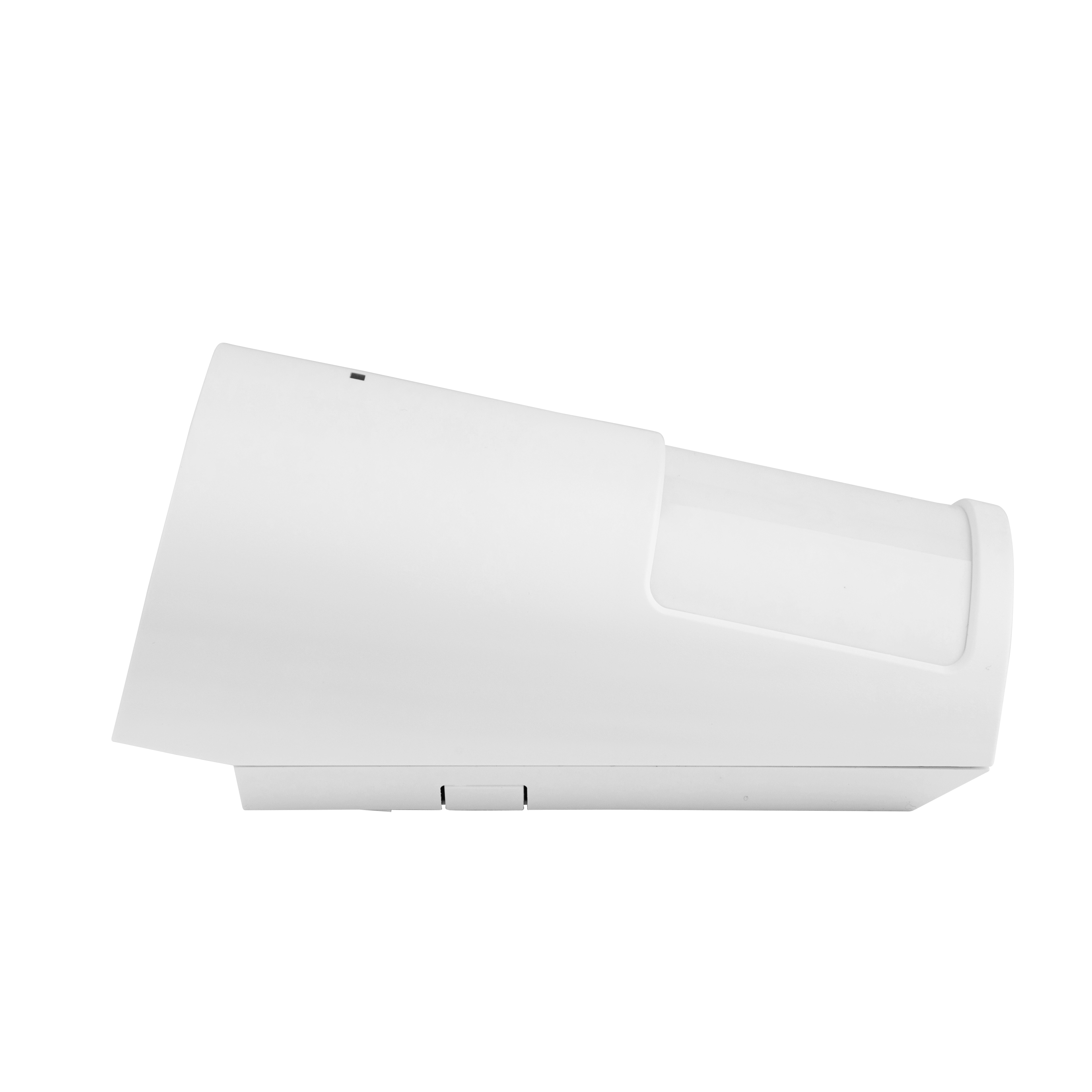

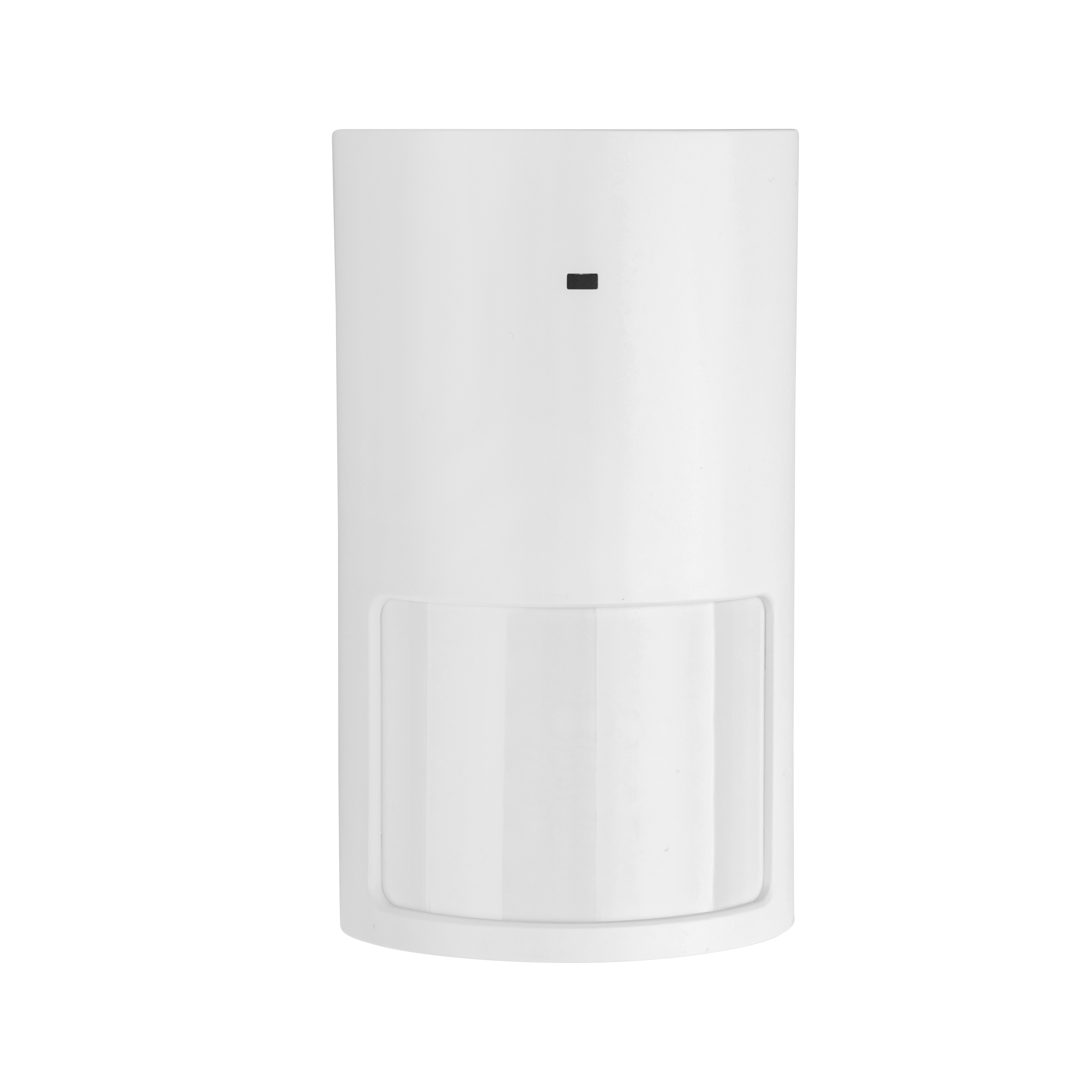

The PAX PIR, equipped with a 90° coverage angle, 54 detection zones, and automatic temperature compensation, offers reliable motion detection with a low voltage threshold of 2.6V, accommodating PETs up to 10kg, and ensuring an impressive six-year battery life with a 1500m radio range in open spaces, making it an efficient and long-lasting digital PIR detector.

SKU: PAX PIR Tag: Categories: , , Tag:
Request Quote
 Delivery
Cost will be charged separately.
 Download TDS
Review the product's specs
Bi-directional type for wireless communication Jamming detection and communication channels encryption Signal strength indication (RSSI) Standard type of batteries – CR123A Energy saving mode Front cover and rear (anti-tear) tamper Adjustable pulse filter – 1 or 2 pulses Automatic temperature compensation Events transmitted: Detection of movement, Tamper activation, Low battery 54 Detection zones PET Immunity Up to 10kg Coverage angle - 90° Installation method - Indoors

Color: White
Size: 63 x 118 x 55 mm
Features:
Operation frequency: ~ 868MHz
Communication type: Bi-directional
Radio distance (open
space): up to 1500m
Walk detection speed 0.3 m/s – 3.0 m/s
Battery (type CR123A) 1 х 3 V/ 1500mAh
Battery life (max. without
LED) ~ 6 years
Low voltage threshold 2.6V
Current consumption
(TX/Standby) 26 mA / 4 μA
White light immunity 4500 Lux
Operating temperature
range:
from -10°C to
+50°C

Digital PIR detector
Coverage angle 90°
Low voltage threshold 2.6V
54 Detection zones
Automatic temperature compensation
PET 10kg
Radio distance (open space) – up to 1500m
Battery: 1x3V/1500mAh, CR123A type
~ 6 years battery life
EMC Immunity EN 50130-4
