Wireless Detectors M40 INTRUDER -EU
Wireless Detectors M40 INTRUDER -EU
Commercial UsersHousehold Users
SKU: M40 INTRUDER -EU BRAND:

Wireless Detectors M40 INTRUDER -EU

The M40 Wireless Intruder Detector features a digital process algorithm with automatic drift compensation, ensuring precise detection of temperature changes over 58°C or over time. Its low-profile design includes a 360° LED indicator for clear visibility, while sensor status updates are provided every 8 seconds for reliable monitoring.

SKU: M40 INTRUDER -EU Tag: Categories: , , Tag:
Request Quote
 Delivery
Cost will be charged separately.
 Download TDS
Review the product's specs
Supply voltage U 9-30 VDC (Nom. 12/24 VDC) Alarm state current – base type B24 and B24D: 20mA/12-30V; – base type B24RD: 33mA/12V, 49mA/ 24V, 57mA/30V – base type B12: 18mA/9V, 29mA/12V, 32mA/15V Class A1/R (according to EN 54-5) Output in alarm state at terminal RI 20mA (max)/-3.3V Degree of protection IP 30 Operational temperature range -10 / +60°С Relative humidity resistance (93 ± 3) % at 40°С

Color: White
Size: 102 mm, h 48 mm
Features:
Combined optical-smoke and rate-of-rise fire alarm detector with relay base
• Class* A1/R
• Digital process algorithm
• Automatic drift compensation
• LED indication with 360° visibility
• Gasket ring for additional protection to the smoke chamber against dust and dirt
• Low profile design
• Low current consumption
• Compatible with deep base accessory DeepBase W

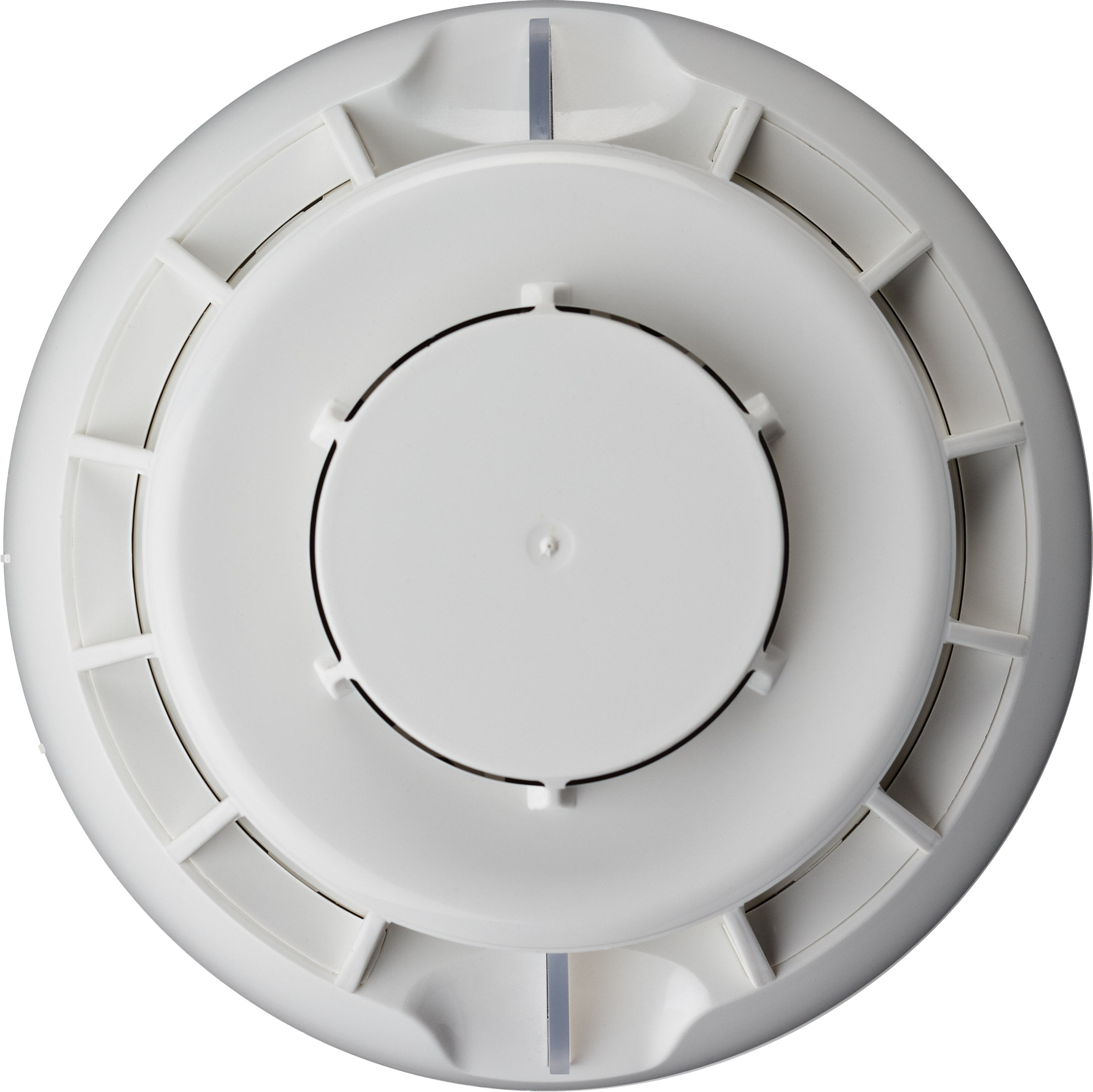

SensoMAG M40 is a combined (optical-smoke and rate-of-rise) detector with digital processing algorithm, class A1/R. The integrated automatic drift compensation operation algorithm reduces significantly the false alarms.
