Hybrid Intruder Control Panels Eclipse 32

Eclipse 32 is up to 32 zone control panel appropriate for security of homes, medium sized commercial premises and offices. The panel supports 8 independent areas (partitions) with individual programming.

SKU: Eclipse 32 Tag: Categories: , , Tag:
Request Quote
 Delivery
Cost will be charged separately.
 Download TDS
Review the product's specs

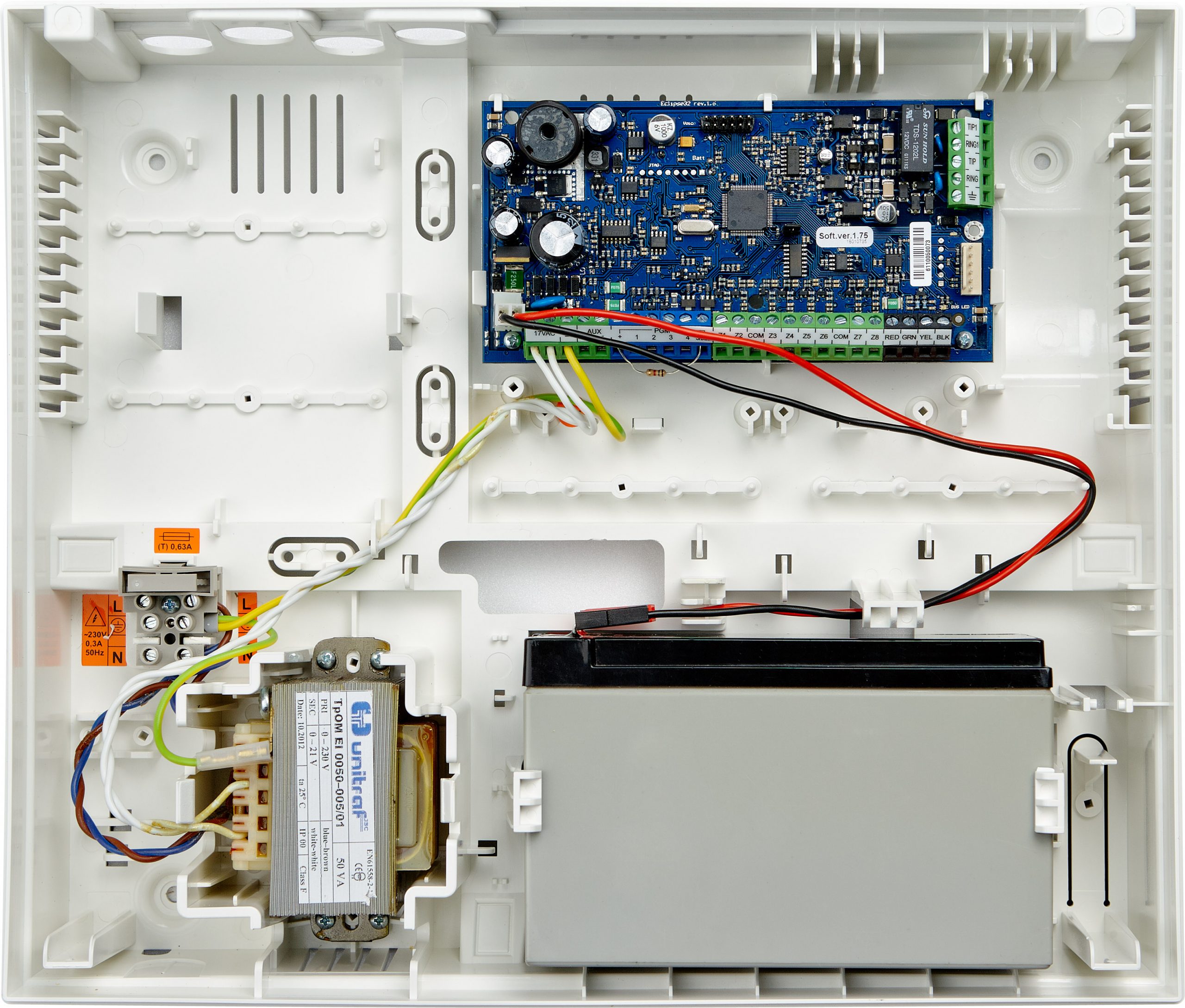

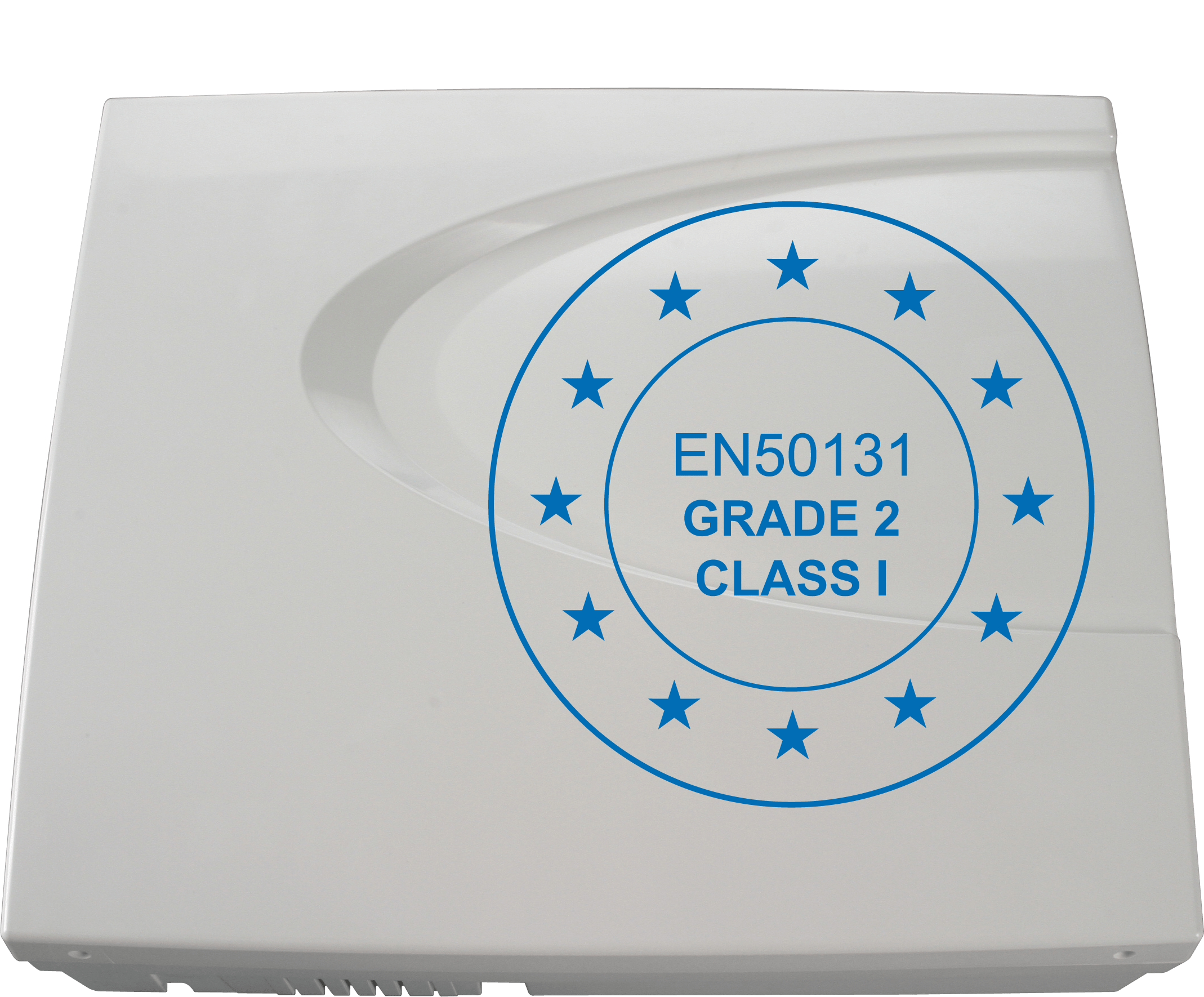

Eclipse 32 is up to 32 zone control panel appropriate for security of homes, medium sized commercial premises and offices. The panel supports 8 independent areas (partitions) with individual programming. Eclipse 32 has 8 physical inputs for connecting of detectors; the zone balancing is with 1 or 2 balancing resistors or doubling zone connection. In the hardware system configuration the installer can choose among 9 connection styles in the zones. The full configuration of 32 zone can be realized with doubling zone connection (16 logical zones on the control PCB) and 1 Zone expander for 8 zones (16 logical zones) or without zone doubling with 3 zone expanders. Eclipse 32 Intruder alarm control panel is EN50131 GRADE 2, Class I certified.

Color: White
Size: 335x290x105mm
Features:
Zone Inputs: 8 physical inputs on the control panel
for connecting of detectors.
Zones: 32, with freely programmable parameters.
Zone wiring: 9 types, single or doubling connection
style.
Areas: 8 independent
Time attendance:
(via proximity card
readers)
8 Time slots (tables) to manage the
user access to the protected sites.
Every time slot can be programmed
individually according to the system
requirements.
Outputs: 4 weak (up to 100mА) and 1 powerful
supervised siren (up to 1А), situated on
the control panel.
Expanding up to 32 outputs using
PGM expander module.
Available programming of PGM4 for
realization of two-wire connection of
standard fire alarm bases.
Access codes: 4/6 digit; 64 User/Manager codes,
1 Maintenance code, 1 Engineer code.
Memory LOG: 1024 events
Report to monitoring
station:
Built-in digital communicator for
telephone line reporting – CID and SIA
protocols supported.
TTE GPRS Standard/TTE GPRS Simple/
TTE LAN communication modules.

Hybrid solution with impressive functionality for
security of medium sized commercial premises and
offices
Up to 32 zones
Up to 8 areas
Remote control and monitoring via Home ProTTEct
(iOS/Android) application
Second entry time per area
3 alternative types of programming – by addresses, by
operations or using tree structure text menus
Up to 30 devices connected to the system bus: LED,
LCD and TFT keyboards, Zone/PGM/Wireless expander
modules, proximity card readers
