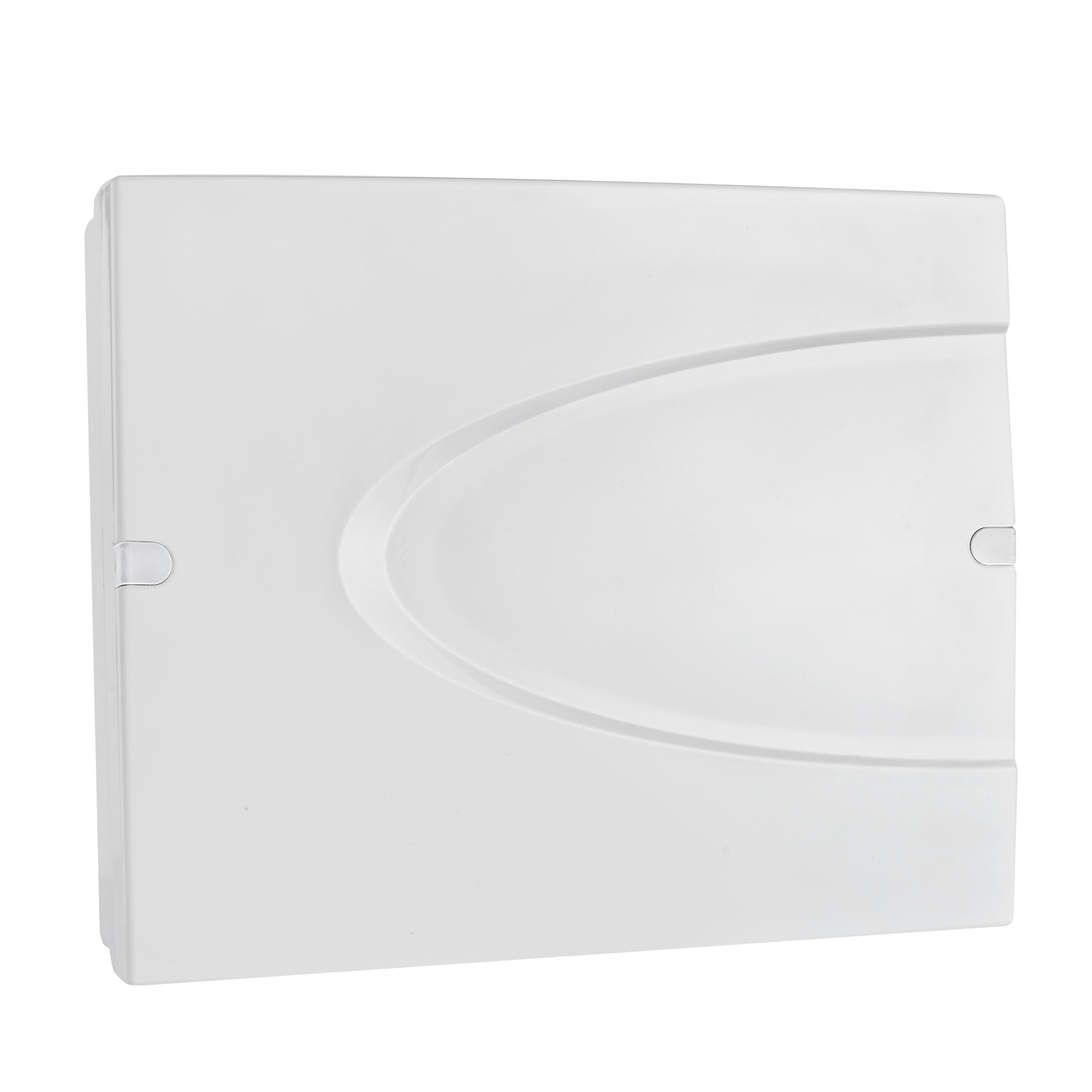

Hybrid Intruder Control Panels Eclipse 16
Eclipse 16 is an alarm panel with 16 physical zone inputs and 3 independent areas (partitions) for security of small residential, commercial or office premises. All 16 zones can be used on board connectors or with zone expander.
Delivery Cost will be charged separately.
Review the product's specs
Color: White
Size: 290x240x80mm
Features:
Zone Inputs: 16 physical inputs on the control panel
for connecting of detectors.
Zones: 16, with freely programmable parameters.
Zone wiring: 5 types, single connection style.
Areas: 3 independent
Outputs: 4 weak (up to 100mА) and 1 powerful
(up to 1А) programmable outputs OC
(open collector) type.
3 logical programmable outputs.
Range of activation events for outputs
management.
Access codes: 4 digit; 32 User codes (1 Manager + 31
Users), 1 Engineer code.
Memory LOG: 1024 events
Report to monitoring
station:
Built-in digital communicator for
telephone line reporting – CID and SIA
protocols supported.
TTE GPRS Standard/TTE GPRS Simple/
TTE LAN communication modules.
Hybrid entry level solution for security of middle size
residential, commercial or office premises
16 zones
3 areas
Remote control and monitoring via Home ProTTEct
(iOS/Android) application
Second entry time per area
3 alternative types of programming – by addresses, by
operations or using tree structure text menus
Up to 5 devices connected to the system bus: LED, LCD
and TFT keyboards, Zone/Wireless expander modules,
proximity card readers
