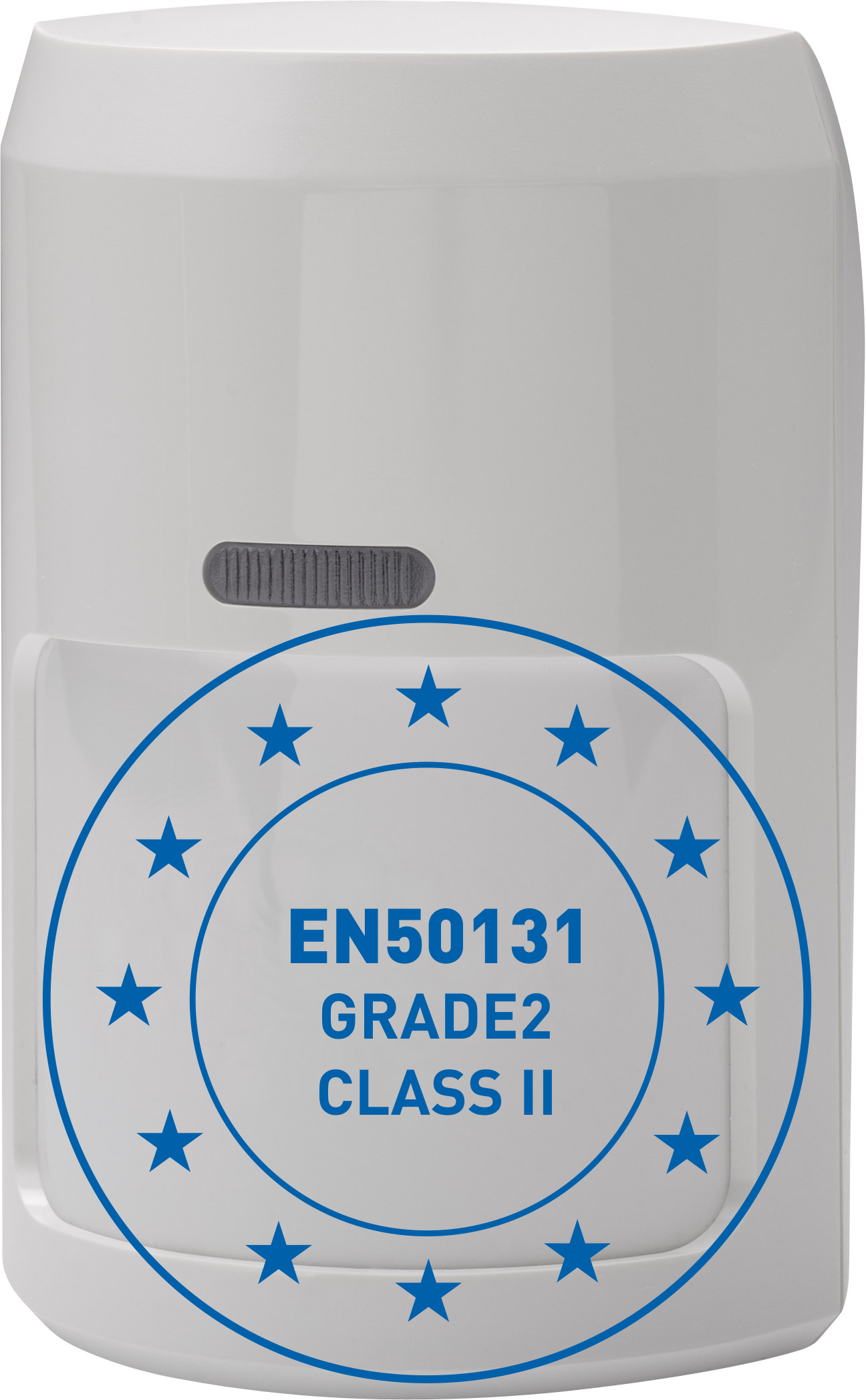

TITAN DL is a digital PIR detector suitable for use in residential, commercial and office buildings, as well as for application in buildings with higher security needs like banks offices, storage houses etc.

SKU: TITAN DL Tag: Categories: , , Tag:
Request Quote
 Delivery
Cost will be charged separately.
 Download TDS
Review the product's specs
TITAN DL is a digital PIR detector suitable for use in residential, commercial and office buildings, as well as for application in buildings with higher security needs like banks offices, storage houses etc. TITAN DL uses a digital process algorithm and is equipped with pet immunity for animals up to 20 kg. The detector is also equipped with digital bi-directional temperature compensation. Titan Series detectors have 5 year warranty. As an option the detector can come with bracket for wall or ceiling mounting. TITAN DL digital PIR detector is EN50131 GRADE2 Class II certified.

Color: White
Size: 62 x 97 x 50mm
Features:
PIR detector with cylindrical lens
• Digital processing algorithm
• Digital bidirectional temperature compensation
• Reverse polarity protection
• 7 sensitivity levels (selectable) – ver. HW2.0 and higher

PIR detector with cylindrical lens
Digital processing algorithm
Suitable for application in high class buildings – bank offices, storehouses, etc.
Digital bidirectional temperature compensation
Coverage angle 90°
Coverage area up to 15m
54 Detection zones
White light immunity up to 4000Lux
PET immunity: small animals 12/20kg (selectable)
Reverse polarity protection
Option – 7 sensitivity levels (selectable)
